As one of the representative of the high-end products of independent research and development, Dalian Teikoku axial flow pumps(TKA)  with accurate market orientation and reliable product quality, service to the large direct current transmission project (national key project) of National Grid, and have got good graces from customers. The successful work of the product has boosted morale for Dalian Teikoku to seize multi-field markets of high-end products. Meanwhile, it has also filled the gap of dependence on import for many years in this field.

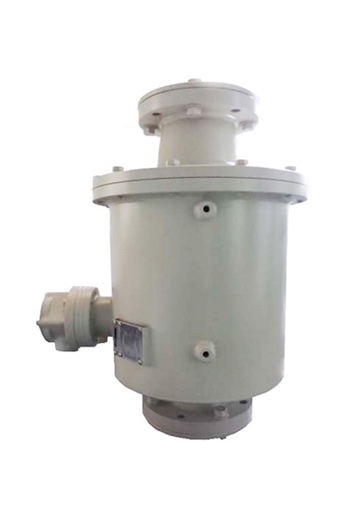

Dalian Teikoku TKA Type Axial Flow Oil Pump

Axial flow oil pumps with high heads and antifriction bearings are always regarded as important reference for National Grid to evaluate the supply capability of oil pump suppliers. At the same time of focusing on canned motor pump market, Dalian Teikoku is also engaged in research and development of new products. TKA axial flow oil pump is complex in structure, and requires high reliability. It adopts internationally advanced axial flow design, so that the circulating cooling mineral oil will only be slightly impeded when passing through different parts. When the pump stops, it is used as a pipeline to guarantee that the free convection of the transformer load is not impacted.

As dispensable conveying equipment in a power transformer and other dedicated transformer oil circulating cooling system, TKA axial flow oil pump adopts antifriction bearings with longer service life, and stator cores impregnated directly in medium oil, so as to cool down motors efficiently. Casing motor shells adopt sheet metal assembly welding structure to meet the requirements of shock resistance, impact resistance, light weight, and lower power consumption, which highlight the charm of high-end products     researched and developed by Dalian Teikoku.

Dalian Teikoku possesses a workshop of super clean grade of 600 square meters, which integrates cleaning, assembling, testing and painting into a whole production line, so that the high requirement of leak-proofness and cleanliness of motor driven oil pumps is guaranteed. Annual production capacity can reach 5000 units.
